99SFA

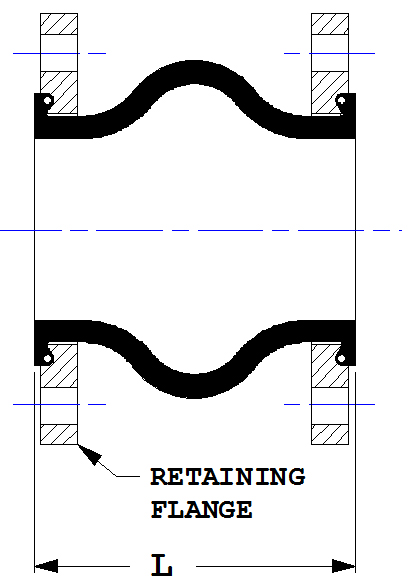

Spherical Expansion Joint
Most Economical Joint

Single Wide Arch Expansion Joint has greater movement capability and with a minimal face-to-face dimension, 99 SFA Expansion joint can be remedies to critical alignment difficulties in limited spaces. The Onyx Expansion Joints reduce and isolate vibration, noise transmission and compensate movements in alignment due to wear and load stresses.

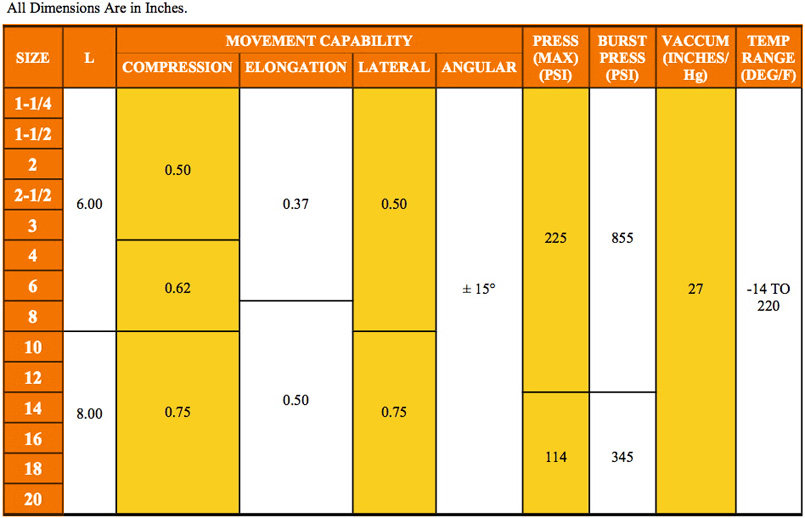

Specifications:

  • Flanges: ANSI 125 lbs Standard
  • Carbon Steel Retaining Flange

Options:

  • Sleeve Elastomer
  • Stainless Steel Retaining Flange
  • Control Rods Unit
Technical Rescource:
PDF Catalog

Valve Sizes
